CNC Turning Center

CNC Turning Center

Contact us for price

Location:Italy

Description

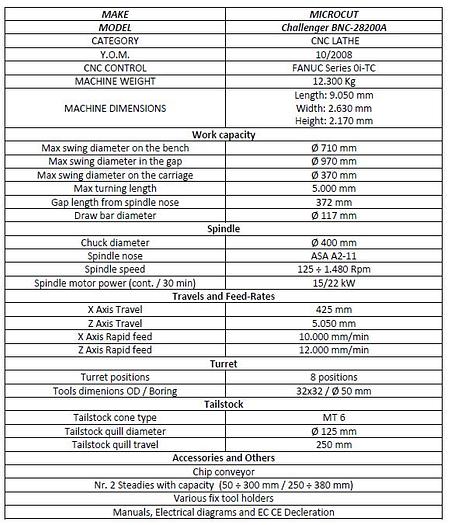

Working capacity

Max. swing diameter on the bench : ø710 mm

Max. swing diameter in the gap : ø970 mm

Max. swing diameter on the carriage : ø370 mm

Max. turning length : 5 mm

Gap length from spindle hose : 372 mm

Draw bar diameter : 117 mm


Spindle

Chuck diameter : ø400 mm

Spindle nose : ASA A2-11

Spindle speed : 125-:1.480 Rpm

Spindle motor power : 15/22 kw


Travel and Feed-Rates

X Axis Travel : 425 mm

Z Axis Travel : 5.050 mm

X Axis rapid feed : 10mm/min

Y Axis rapid feed : 12mm/min


Turret

Turret positions : 8 positions

Tools dimensions OD/ Boring : 32x32/ø 50 min


Tailstock

Tailstock cone type : MT 6

Tailstock quill diameter : ø 125mm

Tailstock quill travel : 250 mm


Accessories

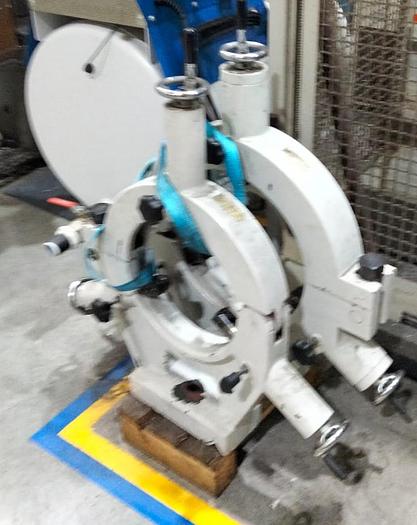

Nr.2 Steadies with capacity (50-:300mm/ 250-: 380 mm)

Various fix tool holders

Manuals, Electrical diagrams and EC CE Declaration



Specifications

ManufacturerMicrocut Challenger
ConditionUsed
