Head Facing machine

Specifications

Table travel                            :          1000 mm

Max workpiece length            :          895 mm

Max workpiece width              :          355 mm

Min - Max workpiece height    :          125÷545 mm

Useful table surface                :          920x210 mm

Segmented grinding wheel diameter   :          355 mm (14”)

Variable head speed rotation              :          300÷1500 rpm

Variable table travel speed                  :          0÷1500 mm/min

Head motor                                         :          4.0 kW (M 2.2 kW)

Table motor                                        :          0.75 kW

Fast head feed motor                         :          0.18 kW

Coolant pump motor                           :          0.10 kW

Dimensions (LxWxH)                          :          1680x1140x1850 mm

Weight                                                :          1015 kg

Standard equipment

• Adjustable spindle speed complete with digital read-out
• Adjustable table feed
• Table with recirculating-ball screw
• Fast motorized head feed
• Manual/Continuous/Automatic working modes
• Turning control panel
• Splash and safety guard with polycarbonate shield
• Pair of parallel supports with clamps
• Lubricant for slides
• Wrench set
• Instruction manual

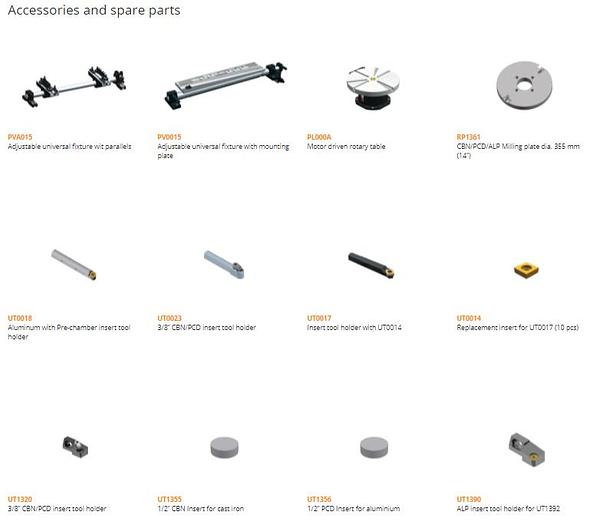

Note: Optional accessories must order with the machine at extra cost.
