Brake Lathe

Specifications

Min-Max drum capacity : 150÷710 mm

Max drum depth : 210 mm

Max disc diameter : 860 mm

Max disc depth : 150 mm

Max disc thickness : 60 mm

Spindle rotation speed : 70–100–145 g/min

Variable table feed speed : 0÷27 mm/min

Spindle motor : 0,75 kW

Dimensions (LxWxH) : 840x505x510 mm

Weight : 205 Kg

Standard equipment

• Disc/Drum tool holder
• Insert tool holder for Drums
• Insert tool holders for Discs
• Ø 30 mm shaft with nut
• Spacers
• Centering cones
• Clamping bells
• Spring
• Drum silencer band
• Wrench set
• Instruction manual

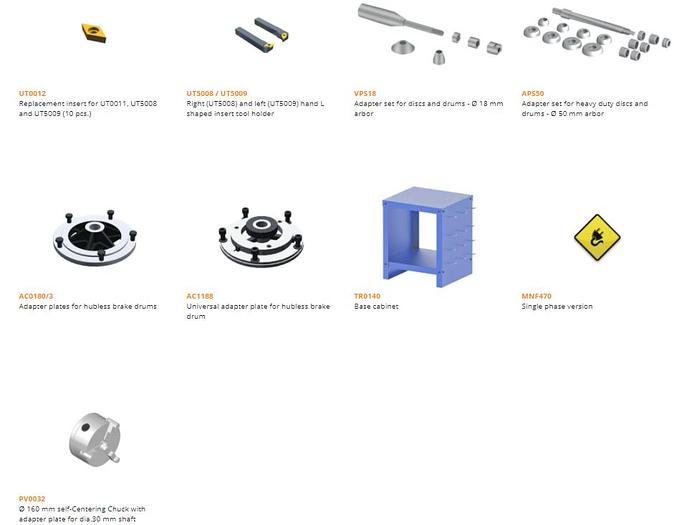

Note: Optional accessories must order with the machine at extra cost.
