Comec - TD302

Comec - TD302

Contact us for price

Accra, Ghana

Description

Specifications

Working stroke           :          90 mm

Rotor thickness           :          5÷40 mm

Feed rate                    :          15 mm/min

Feed motor                 :          12 V

Weight                        :          8,5 kg

Disc rotation speed     :          95 rpm

Motor driving unit        :          0,5 Hp (0,37 kW)

Weight                        :          42 kg

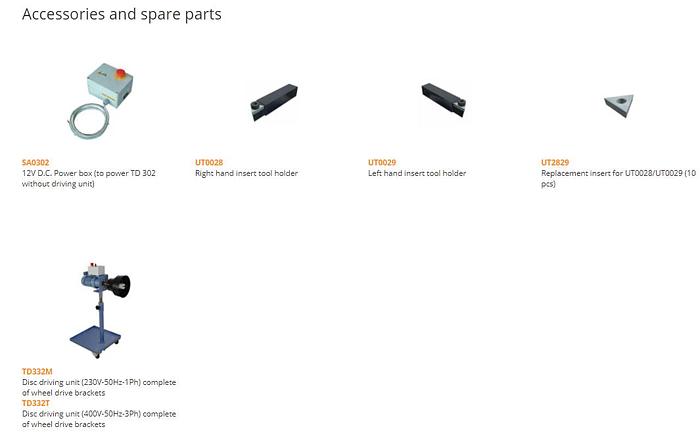

Standard equipment

  • Power feed on both directions (12 V-D.C.)
  • Electrical control stop
  • Power cable
  • Set of clamps
  • Right-end insert tool holder
  • Left-end insert tool holder
  • Housing case
  • Wrench set
  • Instruction manual


Note: Optional accessories must order with the machine at extra cost.

Specifications

ManufacturerComec -
ModelTD302
ConditionNew
Working stroke90 mm
Rotor thickness5÷40 mm
Feed rate15 mm/min
Disc rotation speed95 rpm
Motor driving unit0,5 Hp (0,37 kW)
Weight42 kg
